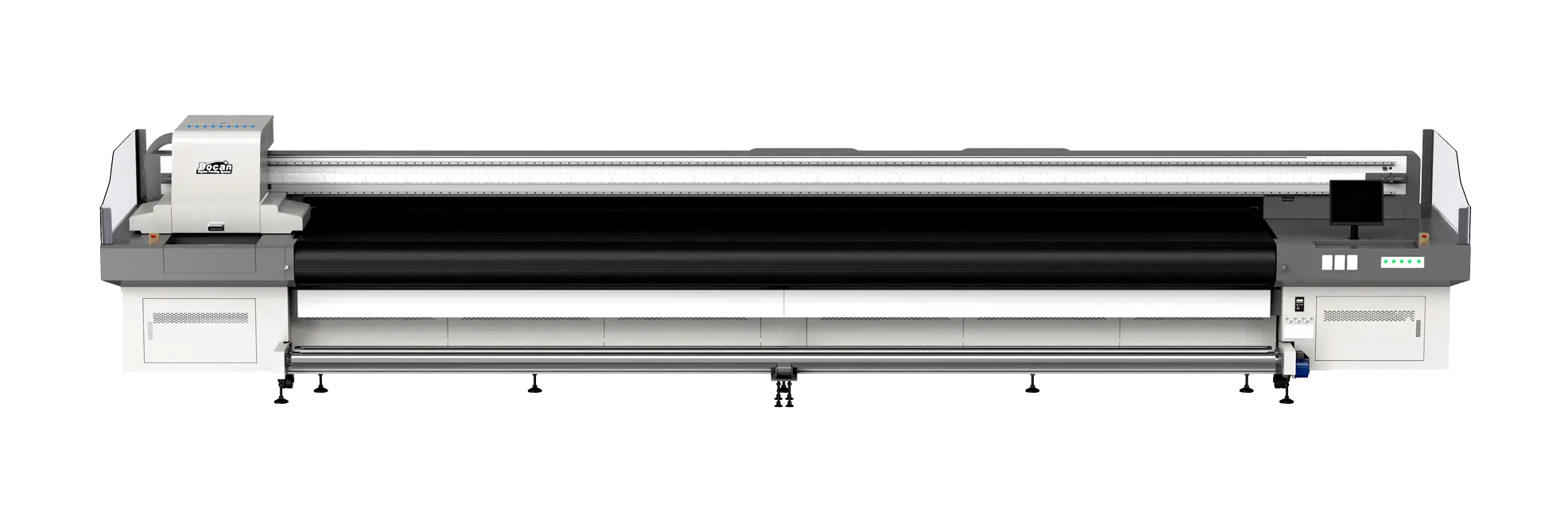

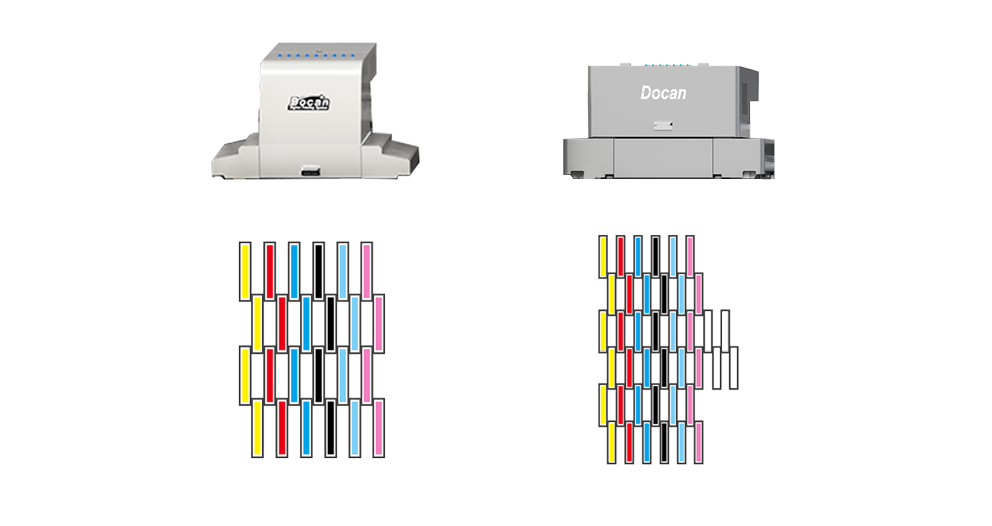

Redefining industry standards with high-precision, high-speed printing. Simultaneously prints 2 rolls of 3.2m or 4 rolls of 1.5m materials, boosting productivity while supporting Dual-Layer Single-Side Printing effects.
Explore detailed specifications of FR6606 for your professional needs

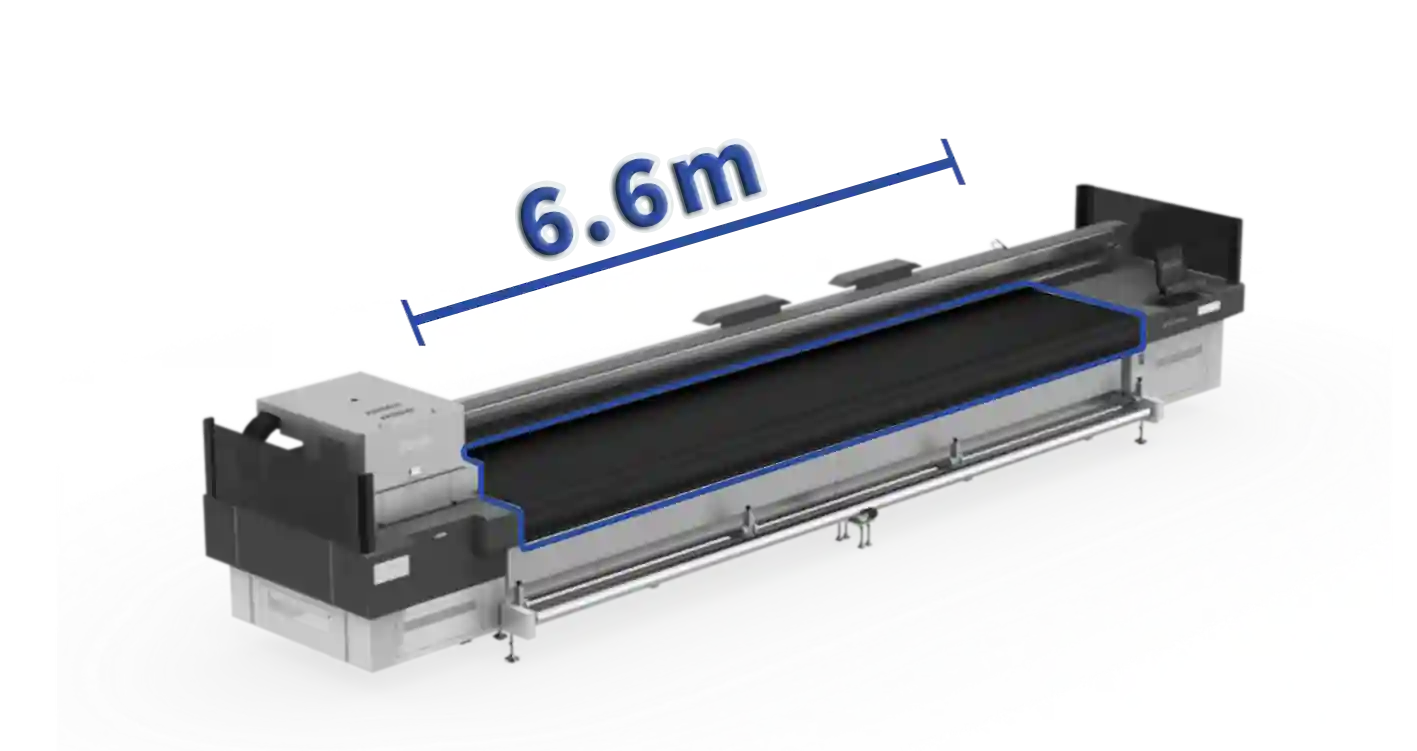

| Print Area | 6600mm |
| Print Height | 1-50mm |
| Resolution | 540×1440dpi |
| Print Speed | Konica 1024A(6PL): 4Pass(6 Row): 162~192sqm/h 6Pass(6 Row): 120~132sqm/h 8Pass(6 Row): 78~96sqm/h Konica 1024i(13PL): 4Pass(6 Row): 162~192sqm/h 6Pass(6 Row): 120~132sqm/h 8Pass(6 Row): 78~96sqm/h |
| Print Head | Konica 1024A(6PL), Konica 1024i(13PL) |
| Head Quantity | 4-48pcs |
| Ink Colors | CMYK/LC/LM+W |
| Curing Method | UV LED |
| File Formats | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirements | 3PH AC380V 50/60Hz 27KW 70A |
| Environment | Temperature: 20°C~28°C Humidity: 40%~60% |
| Ink Tank Capacity | 5L |
| Dimensions | 9420mm × 2166mm × 1800mm |
| Weight | 7980kg |
Customize your FR6606 to meet specific production needs
