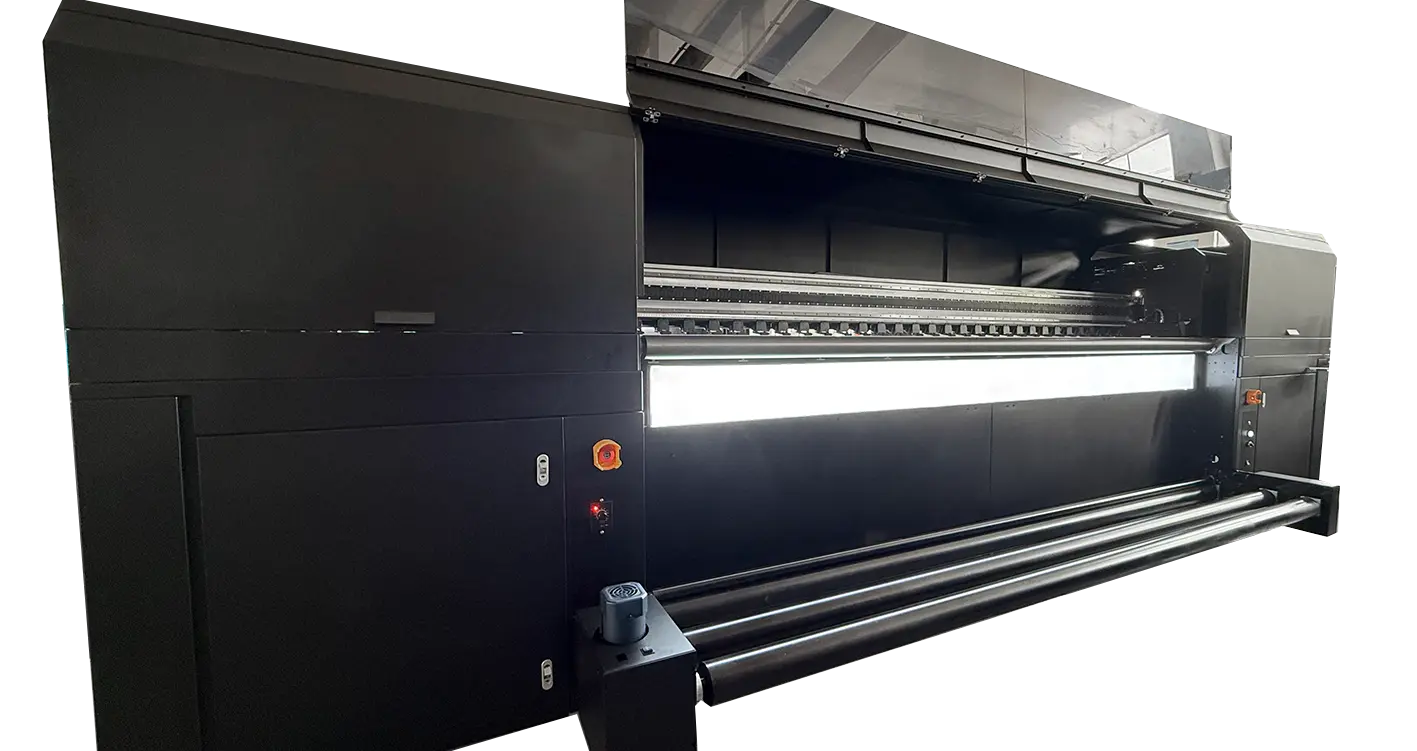

High-precision single/dual roll printing with synchronized operation, capable of dual-roll printing up to 1.6m and single-roll printing up to 3.2m.
Explore U3300 technical specifications for professional requirements
| Print Area | 3300mm |
| Print Height | 1-30mm |
| Resolution | Max 726×2400 dpi |
| Print Speed | Konica 1024A (6PL): 4Pass (3 Row): 95-115 sqm/h 6Pass (3 Row): 63-76 sqm/h 8Pass (3 Row): 42-48 sqm/h Konica 1024i (13PL): 4Pass (3 Row): 100-120 sqm/h 6Pass (3 Row): 68-81 sqm/h 8Pass (3 Row): 47-53 sqm/h |
| Print Head | Konica 1024A (6PL), Konica 1024i (13PL) |
| Head Quantity | 4~18pcs |
| Ink Colors | CMYK/LC/LM+W |
| Curing Method | UV LED |
| File Formats | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI/ONYX/Caldera |
| Power Requirements | AC 380V 50/60HZ 25KW 38A |
| Environment | Temperature: 20℃~28℃ Humidity: 40%~70% |
| Ink Tank Capacity | 5L |
| Dimensions | 6300mm × 1600mm × 1950mm |
| Weight | 1800kg |
Customize your U3300 for specific production needs
Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.
